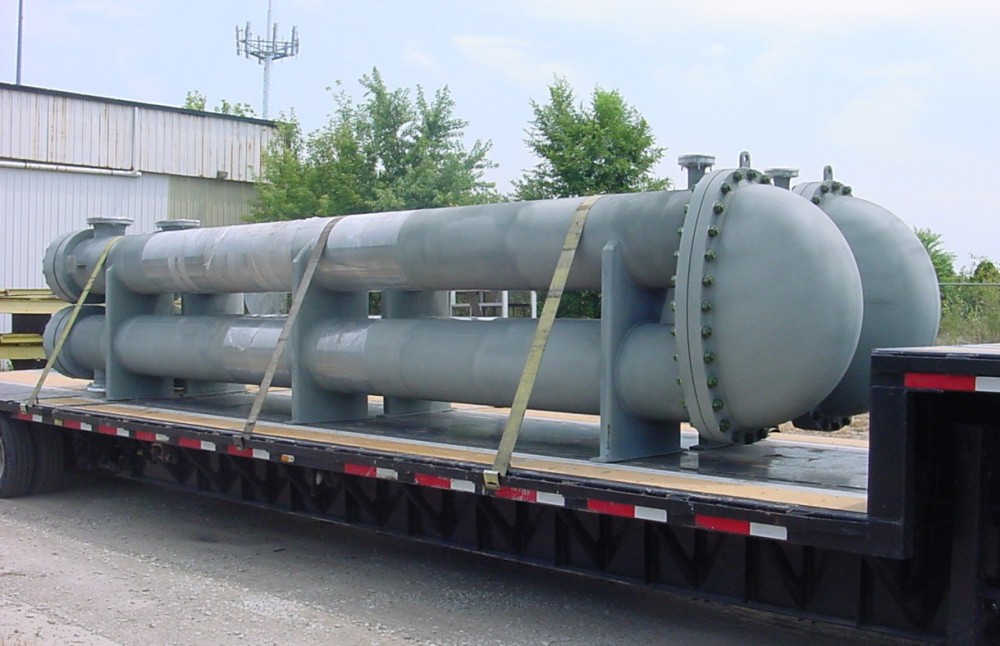

In the complex world of artificial heat transfer outfits, standardization plays a pivotal part in ensuring safety, trustworthiness, and performance. A TEMA heat exchanger refers to a shell and tube heat exchanger designed, manufactured, and specified according to norms established by the Tubular Exchanger Manufacturers Association( TEMA). These norms have become the global standard for shell and tube heat exchanger design, furnishing masterminds, manufacturers, and end- druggies with a common frame for specifying, fabricating, and maintaining these critical factors. Whether you are involved in petroleum refining, chemical processing, power generation, or any industry that requires robust heat transfer equipment, understanding TEMA norms and groups is essential for making informed opinions about heat exchanger selection, procurement, and operation.

Understanding the Tubular Exchanger Manufacturers Association( TEMA)

Innovated in 1939, TEMA is a professional trade association composed of leading heat exchanger manufacturers in North America and worldwide. The association developed comprehensive norms to establish invariant practices for the mechanical design, fabrication, and performance of shell and tube heat exchangers.

The TEMA norms publication, formally named" norms of the Tubular Exchanger Manufacturers Association," provides detailed specifications covering:

• Mechanical design conditions
• Fabrication norms
• Accoutrements of construction
• title and language
• Testing and examination procedures
• Recommended good practices

These norms have gained transnational recognition and are extensively substantiated in engineering specifications, procurement documents, and nonsupervisory canons across diligence.

The Three TEMA Classes R, C, and B

TEMA categorizes shell and tube heat exchangers into three distinct classes grounded on their willed service inflexibility and design conditions. Each class represents precipitously more strict construction norms.

TEMA Class R( Refinery Service)

Class R represents the most rigorous norms, designed for severe service conditions in petroleum refineries and analogous demanding operations.

crucial Characteristics

• Heaviest construction with maximum safety factors
• Loftiest design pressures and temperatures
• utmost conservative tube- to- tubesheet joint conditions
• Enhanced erosion allowances
• strict examination and testing conditions
• Premium material specifications

Typical operations

• Crude oil painting preheat trains
• High- pressure hydrocarbon services
• Catalytic cracker operations
• Hydrogen-rich surroundings
• sharp refinery streams
• Critical service locales

Class R exchangers give maximum trustability in harsh surroundings where failure consequences are severe and operating conditions are extreme.

TEMA Class C( marketable and General Process Service)

Class C norms apply to moderate service conditions common in general chemical processing and marketable operations.

crucial Characteristics

• Moderate construction norms
• Suitable for typical process assiduity conditions
• Reasonable erosion allowances
• Standard examination conditions
• Cost-effective design approach
• Applicable safety factors for general service

Typical operations

• Chemical processing shops
• Food and libation diligence
• HVAC operations
• Pharmaceutical manufacturing
• Pulp and paper operations
• General manufacturing processes

Class C provides an provident balance between trustability and cost for operations that do not bear the extreme robustness of Class R.

TEMA Class B( Chemical Process Service)

Class B occupies the middle ground between R and C, designed for relatively severe chemical process operations.

crucial Characteristics

• Intermediate construction norms
• Enhanced design factors compared to Class C
• Appropriate for further demanding chemical services
• Balanced approach to trustability and economics
• Moderate erosion allowances
• Standard plus examination conditions

Typical operations

• Chemical product installations
• Petrochemical plants
• Specialty chemical manufacturing
• Aggressive chemical surroundings
• Moderate to severe service conditions

Class B serves operations taking lesser robustness than Class C but not warranting the expenditure of Class R construction.

TEMA title System

TEMA established a standardized title system that describes heat exchanger configuration using a three- letter designation representing frontal head type, shell type, and hinder head type.

Front Head Types( First Letter)

A- Channel and Removable Cover Most common frontal head, provides easy tube pack junking and examination.

B- Bonnet( Integral Cover) One- piece welded construction, used when frequent access is not needed.

C- Channel Integral with Tubesheet and Removable Cover Provides access while maintaining structural integrity.

N- Channel Integral with Tubesheet and Removable Cover analogous to C but with different exposure.

D-Special High- Pressure Closure For extreme pressure operations taking enhanced sealing.

Shell Types( Alternate Letter)

E- One Pass Shell Simplest design with fluid entering one end and exiting the other.

F- Two Pass Shell with Longitudinal Baffle Creates two resemblant inflow paths within the shell.

G- Split Flow Fluid enters centrally and splits to both ends.

H-Double Split Flow analogous to G but with fresh baffling.

J- Divided Flow Creates specific inflow patterns for special operations.

K- Kettle Type Reboiler Large vapor space for boiling operations.

X- Cross Flow Single pass with vertical inflow patterns.

hinder Head Types( Third Letter)

L- Fixed Tubesheet Like A Tubes welded directly to shell, no pack junking.

M- Fixed Tubesheet Like B analogous to L with bonnet- style construction.

N- Fixed Tubesheet Like N Alternative fixed tubesheet arrangement.

P-Outside Packed Floating Head Allows discriminational thermal expansion with external quilting.

S- Floating Head with Backing Device Split ring design permits pack junking.

T- Pull Through Floating Head Entire pack can be removed without disturbing shell connections.

U-U-Tube Pack Tubes fraudulent inU-shape, allowing thermal expansion.

W- Externally Sealed Floating Tubesheet Special sealing arrangement for floating head.

Illustration AEL Configuration

An" AEL" heat exchanger features:

• A Channel and removable cover( front)
• E Single pass shell
• L Fixed tubesheet( reverse)

This common configuration offers good availability, simple construction, and provident design for fixed tubesheet operations.

crucial TEMA Design Specifications

Tube Specifications

TEMA norms specify:

• minimal tube wall consistence conditions
• Tube pitch confines and patterns( triangular, square, rotated square)
• Tube- to- tubesheet joint types( expanded, welded, or both)
• U-bend compass conditions
• Tube length limitations

Shell Design

Standards cover:

• Shell consistence computations
• snoot sizing and underpinning
• Support conditions and distance
• Internal cocoon designs and distance
• Tie rod and spacer specifications

Material Conditions

TEMA references ASME norms for accoutrements while furnishing guidance on:

• Carbon sword specifications
• amalgamation sword selections
• Stainless sword grades
• Non-ferrous accoutrements ( bobby blends, titanium, etc.)
• Gasket and seal accoutrements

Pressure and Temperature Conditions

Design rules regard for:

• Maximum permissible working pressure( MAWP)
• Design temperature ranges
• Thermal expansion considerations
• Pressure testing conditions
• Safety factor operations

Benefits of TEMA norms Compliance

Formalized Specifications

TEMA title provides clear, unequivocal communication between masterminds, purchasers, and manufacturers worldwide.

Design trustability

Proven design rules grounded on decades of field experience insure safe, dependable operation across different operations.

Quality Assurance

Defined fabrication and examination conditions establish harmonious quality prospects.

Interchangeability

Formalized designs grease outfit relief, spare corridor procurement, and conservation planning.

threat Mitigation

reactionary design factors and comprehensive testing conditions minimize failure pitfalls.

Regulatory Acceptance

TEMA norms enjoy wide recognition by nonsupervisory authorities and insurance backers universally.

Opting the Applicable TEMA Class

Choosing the right TEMA class involves assessing:

Service inflexibility

• Operating pressures and temperatures
• Fluid cattiness and toxin
• Cycling frequence
• Fouling tendency

Failure Consequences

• Safety counteraccusations
• Environmental pitfalls
• profitable impact of time-out
• form availability

Budget Considerations

• Capital cost constraints
• Life cycle cost analysis
• conservation expenditure protrusions

Regulatory Conditions

• Assiduity-specific norms
• Insurance conditions
• Original law compliance

Partner with TEMA norms Experts

Enforcing heat exchangers designed to TEMA norms requires working with manufacturers who completely understand these specifications and maintain rigorous quality control. Kinetic Engineering specializes in manufacturing perfection- finagled TEMA heat exchanger results, including double pipe, multitube, and hairpin configurations that meet or exceed TEMA norms. With expansive experience across R, C, and B class operations, Kinetic Engineering's engineering platoon ensures every heat exchanger is designed, fabricated, and tested according to applicable TEMA conditions for your specific service conditions. Their commitment to quality, combined with a deep understanding of TEMA norms, makes them an ideal mate for critical heat transfer operations, taking proven trustworthiness and performance.

Conclusion

TEMA heat exchangers represent the gold standard in shell and tube heat transfer outfit design, backed by comprehensive norms that ensure safety, trustworthiness, and performance across different artificial operations. Understanding the three TEMA classes — R for severe refinery service, C for general marketable operations, and B for chemical process service — enables applicable outfit selection grounded on operating conditions and failure consequences. The standardized title system provides clear communication tools, while detailed design specifications covering tubes, shells, accoutrements, and testing ensure harmonious quality worldwide. Whether you are specifying new outfit, assessing being installations, or planning reserves, familiarity with TEMA norms empowers informed decision- timber. As diligence continue demanding lesser effectiveness, safety, and trustability from heat transfer outfits, TEMA norms evolve to meet these challenges while maintaining the proven design principles that have established them as the industry standard. Investing in TEMA- biddable heat exchangers, particularly from manufacturers deeply entrenched with these norms, provides assurance that your critical thermal outfit will perform reliably for times of demanding service.
